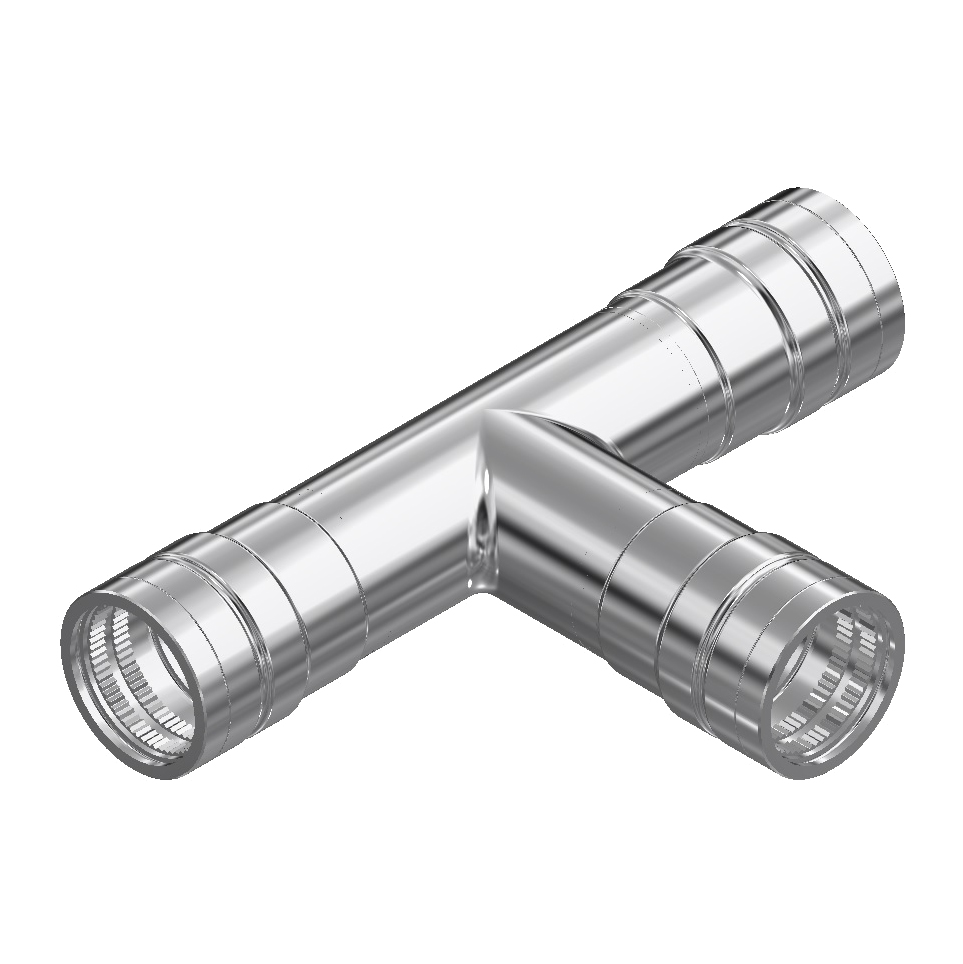

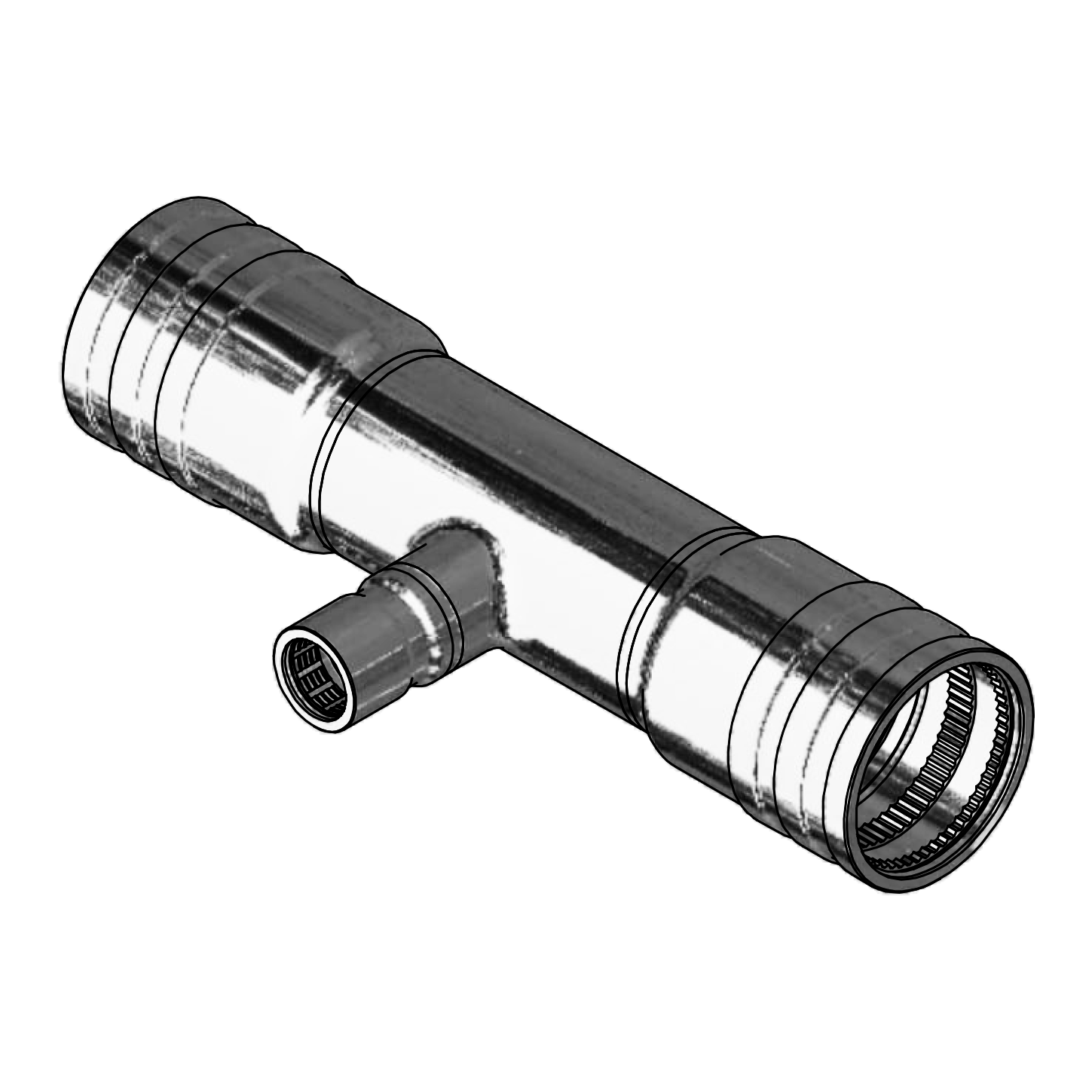

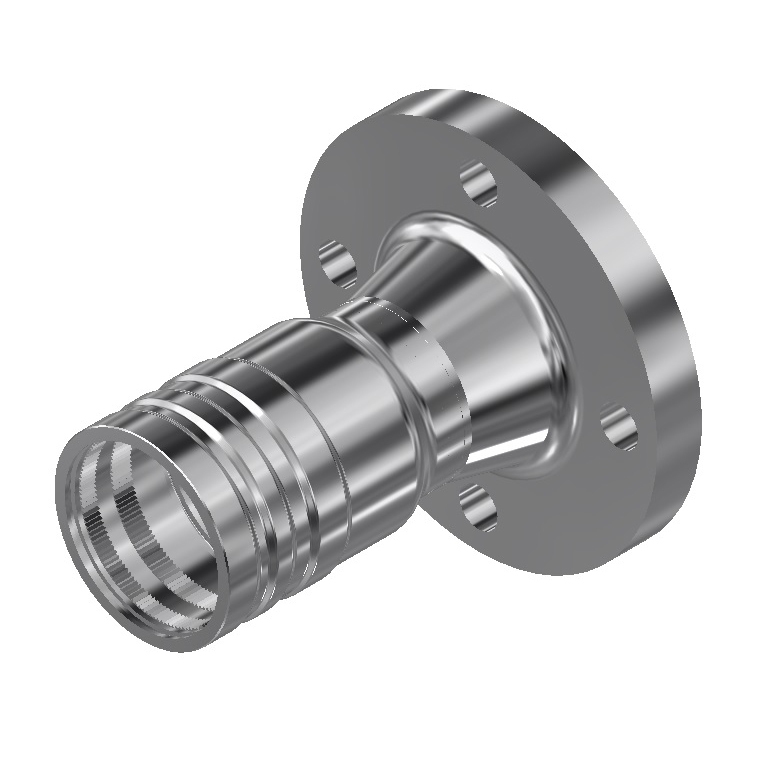

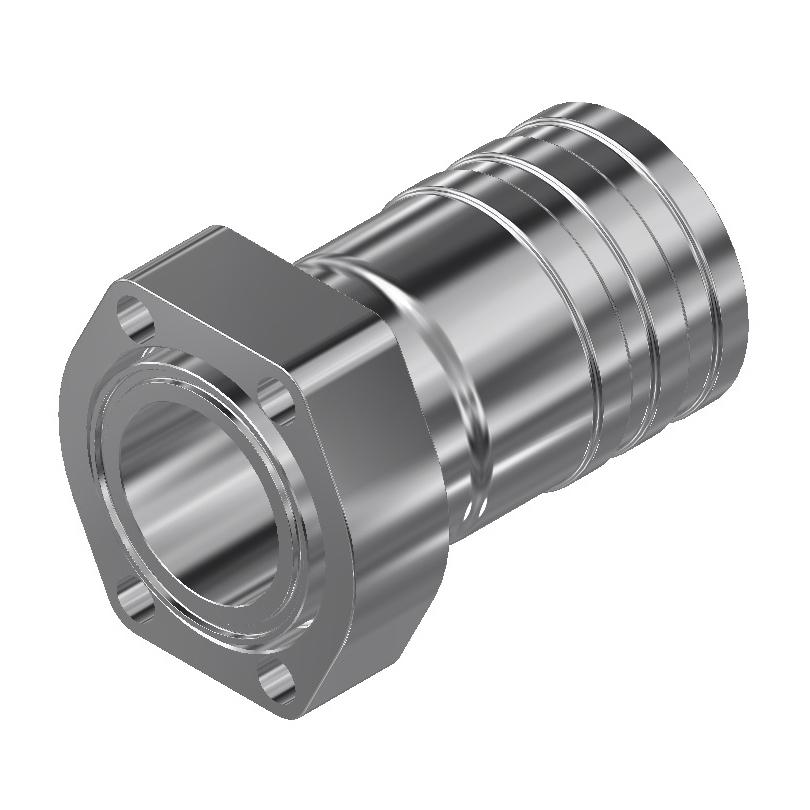

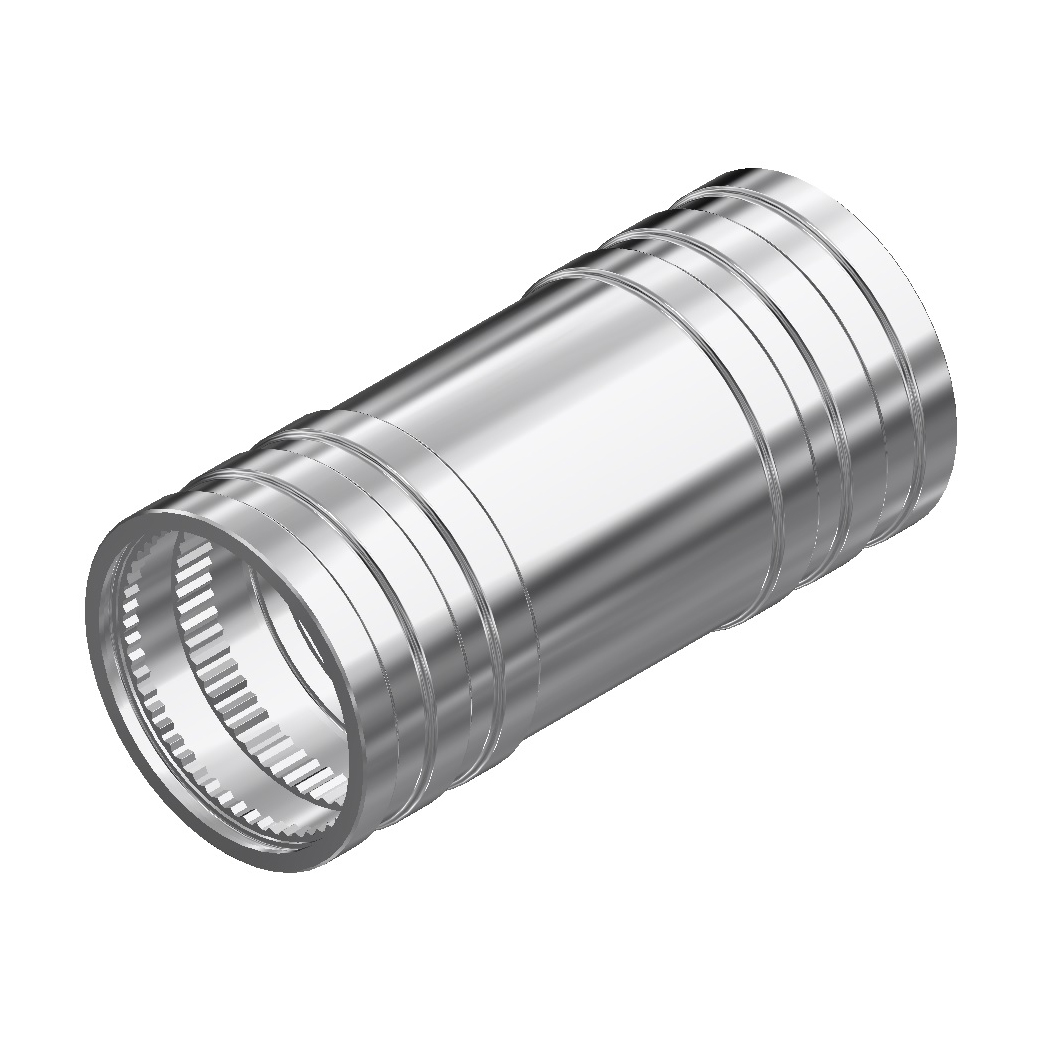

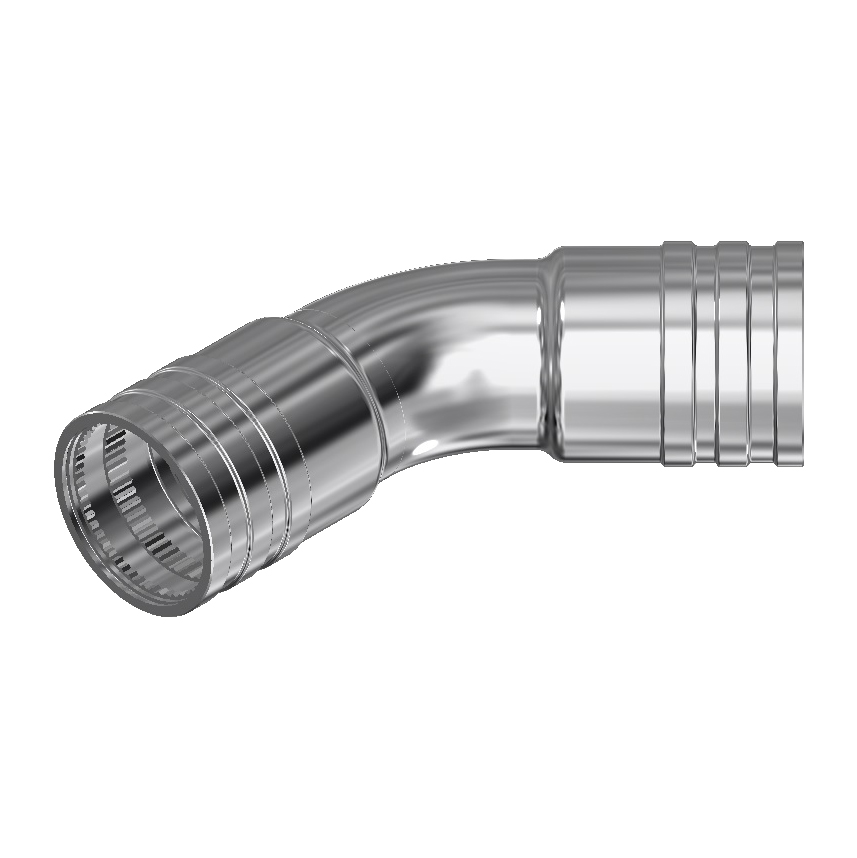

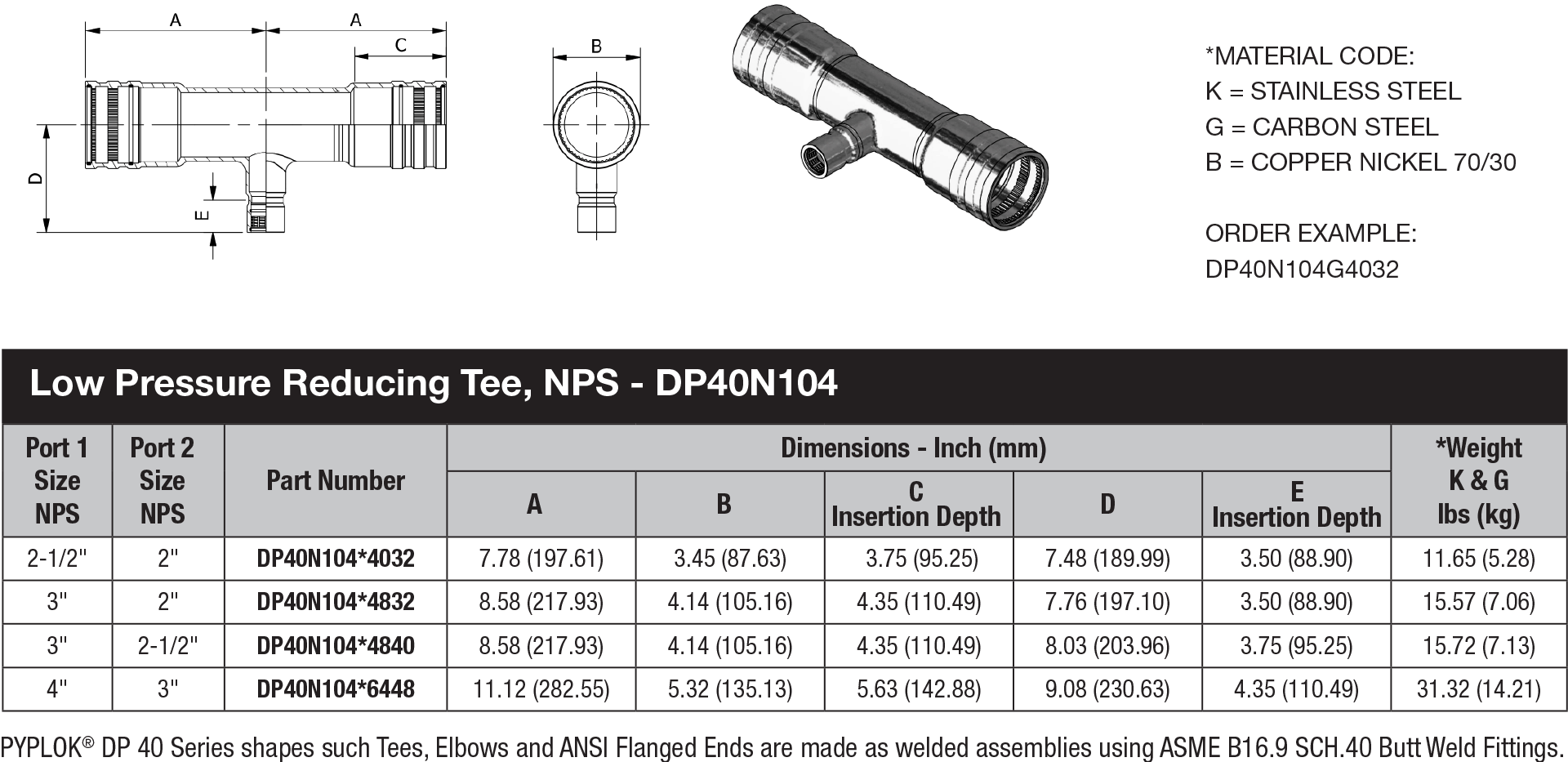

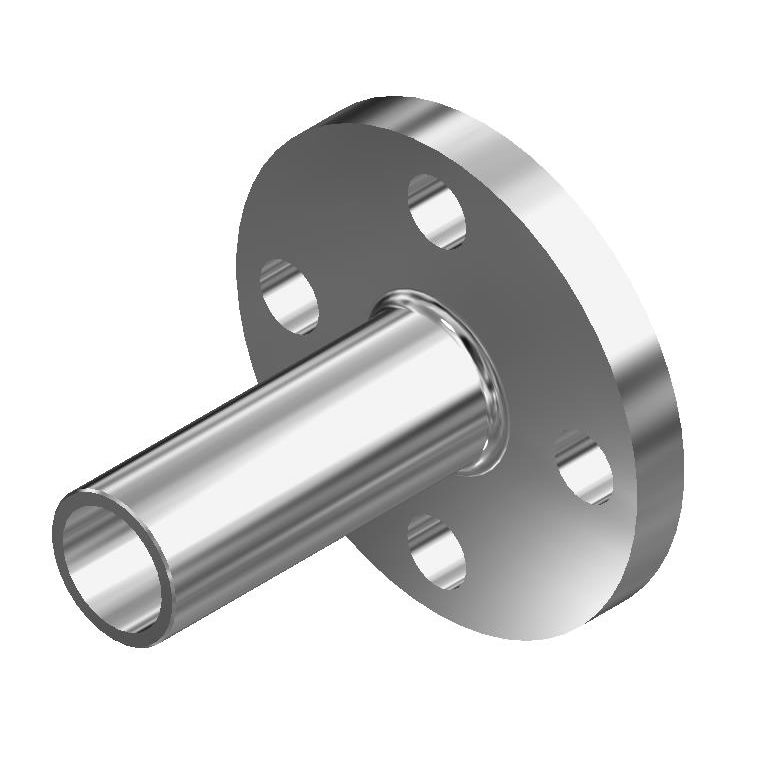

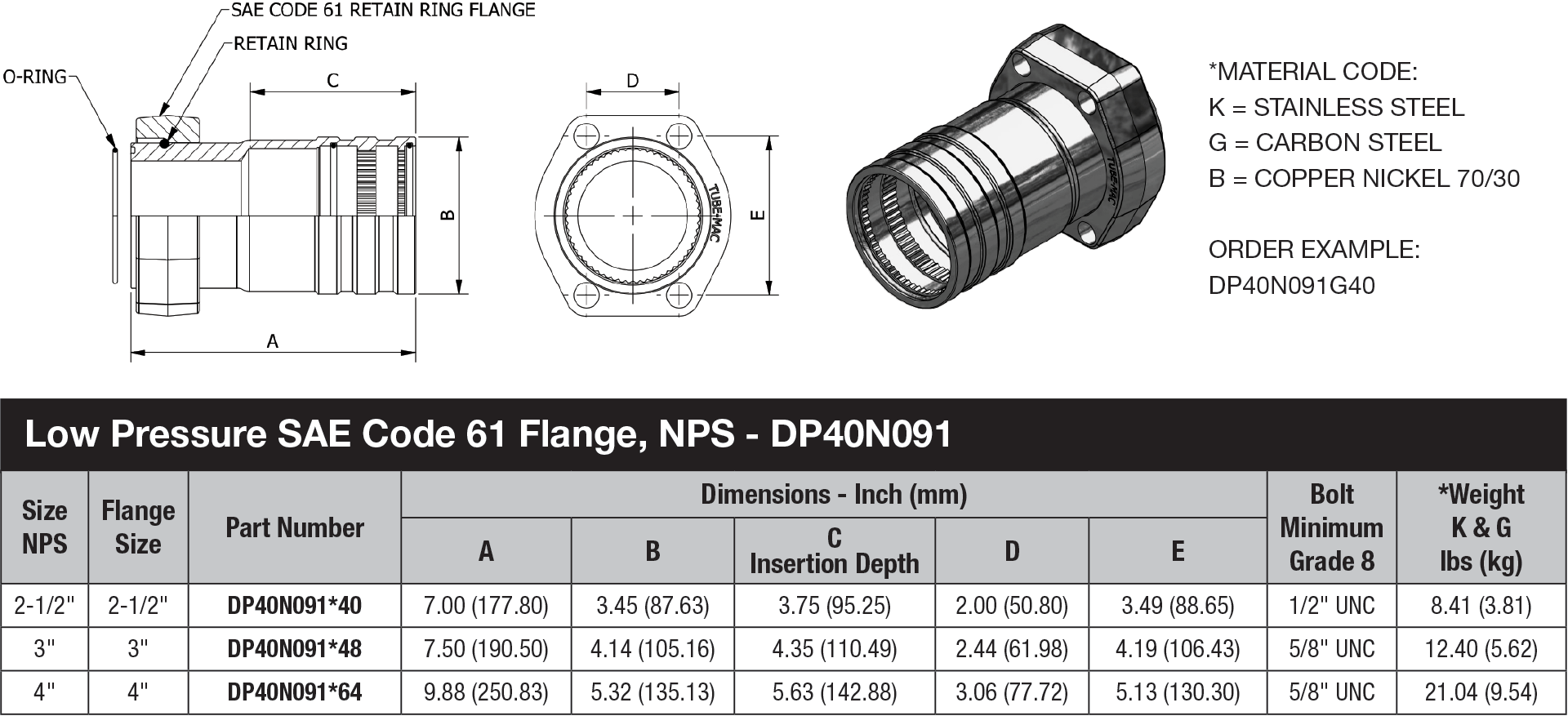

Pyplok® DP 40N low pressure fittings have all the benefits of a welded joint without the hazards associated with hot work. Available in sizes ranging from 2 ½”, 3” and 4” for low-pressure. Pyplok® fittings come in all standard configurations (straights, 45° & 90° elbows, adapters, tees, reducers and flanged ends). Choose from a wide range of materials including carbon steel, stainless steel, duplex, super duplex, copper nickel (CuNi), and titanium. Pyplok® fitting configurations provide permanent ends or a combination of permanent and separable ends. There are two seals: an inner O-ring seal, which is the primary seal, and an outer O-ring seal, the environmental seal that prevents outside contaminants from entering between the pipe and the Pyplok® fitting.
Build connections you can trust with Pyplok®. For help finding the ideal component for your system's demands, contact your local authorized dealer, or check out our online pipe fitting guide.
